Thor Fiber F-FE-TR-MM Fast Ethernet 10/100 To Fiber Converter For Multimode Fiber Transceiver

Thor Fiber F-FE-TR-MM Fast Ethernet 10/100 To Fiber Converter For Multimode Fiber Transceiver - Image 2

Thor Fiber F-FE-TR-MM Fast Ethernet 10/100 To Fiber Converter For Multimode Fiber Transceiver - Image 3

Thor Fiber F-FE-TR-MM Fast Ethernet 10/100 To Fiber Converter For Multimode Fiber Transceiver

Original price was: $95.00.Current price is: $66.50.

SKU: BWFYA 37026860 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

F-FE-TR-MM – Overview

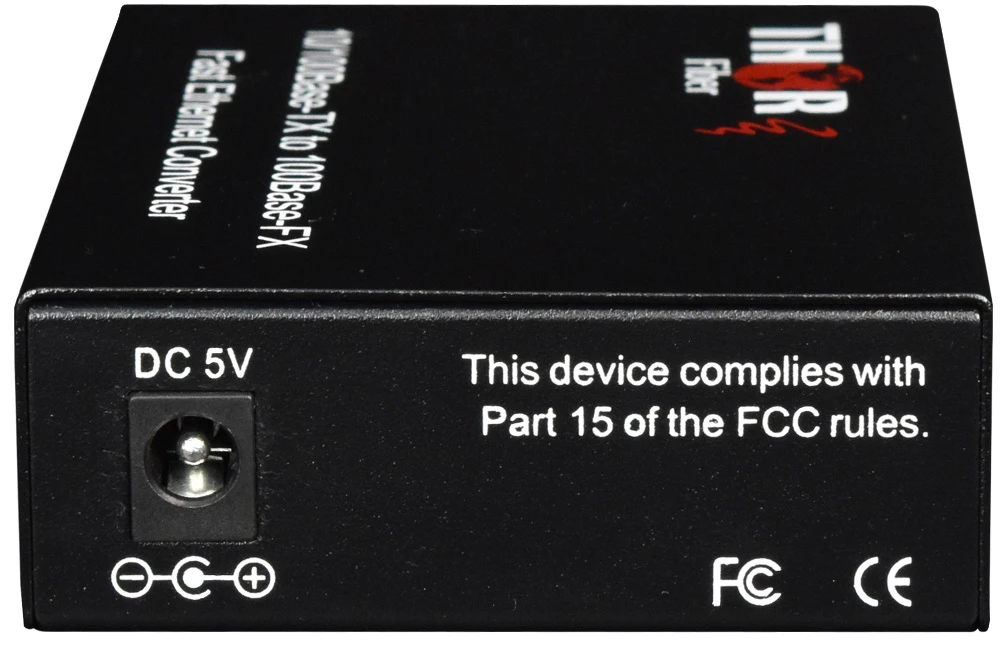

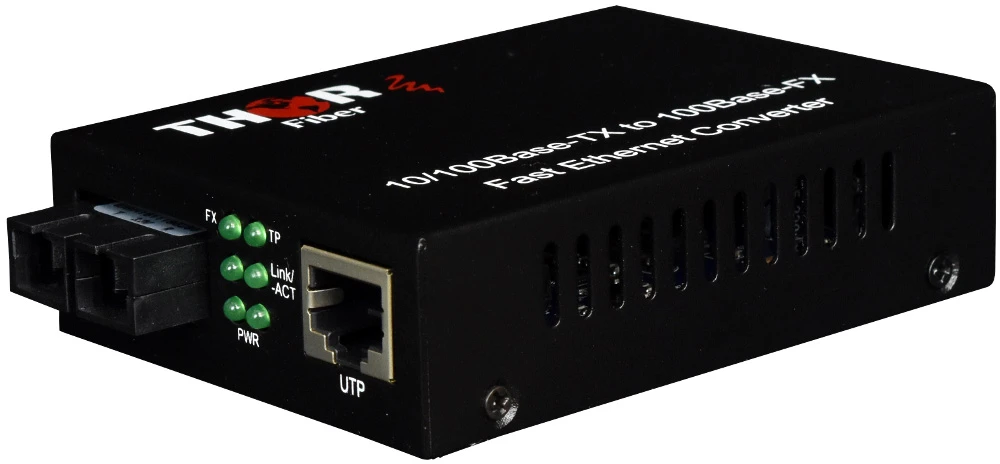

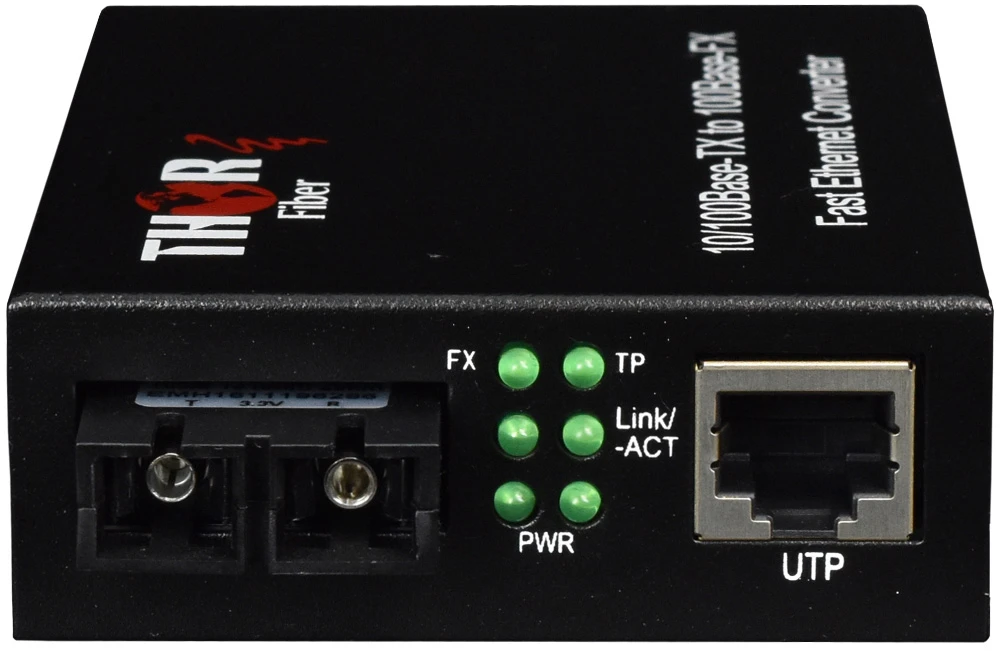

The Thor Fiber F-FE-TR-MM media converter is a cost-effective, feature-packed solution for expanding or extending an existing Ethernet/ Fast Ethernet network. Thor’s compact converter is enhanced with features like remote and local loop back testing, auto-negotiation, and link fault signaling for total reliability, It also features seven DIP switches for manual activation of the enhanced features. This gives the F-FE-TR-MM the ability to be quickly integrated into any network configuration. The Thor Fiber F-FE-TR-MM can support a variety of multimode cables but comes standard with SC connectors and will extend your signal on of up to 1km or (5kM on custom orders) and has the flexibility to migrate to 100Base-FX networks. Several converters can be simultaneously installed by using the F-CHA 12-slot 19″ rack-mount chassis for massive expansion.

Features:
- Compliant with IEEE 802.3 & 802.3u Fast Ethernet Standards
- LED Indication: Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/AC
- 10/100Mbps Auto Negotiation
- Auto cross over for TP port
- Support Link Alarm
- Support Switch mode & Pure converter mode
- Dual Port 10/100Mbps Switch inside
- Metal Case
- External Power Adapter
Specifications:
- Connector SC/PC Multimode
- IEEE 802.3 10BaseT, 802.3u 100BaseTX/FX
- Mac Address Table 1 K
- Rate 10M 14,880pps
- Rate 1000M 148,800pps
- Transfer Rate 200 Mbps – Full Duplex
- Wave length 850nm
- Fiber 100BaseFX: 1 x SC Duplex Connector
- Typical Distance: 3000ft
- Min Tx Power -5 dBm
- Max Tx Power -0 Bm
- Power DC 5V, 1.6A
- Ethernet 10/100BaseT: 1 x RJ45 Connector
- Sensitivity -30.0 dBm
- Power Consumption 5 W
- Operating Temperature 0° ~ 50° C
- Humidity 5% ~ 90% non-condensing
- Dimensions 71 x 97 x 26 mm(2.80 x 3.82 x 1.02 inches)
- Weight 0.6 Kg
- Approvals FCC Class A, CE
- Link Budget 11.0 dB
- Method Store and Forward
- Storage Temperature -20° ~ 60° C
