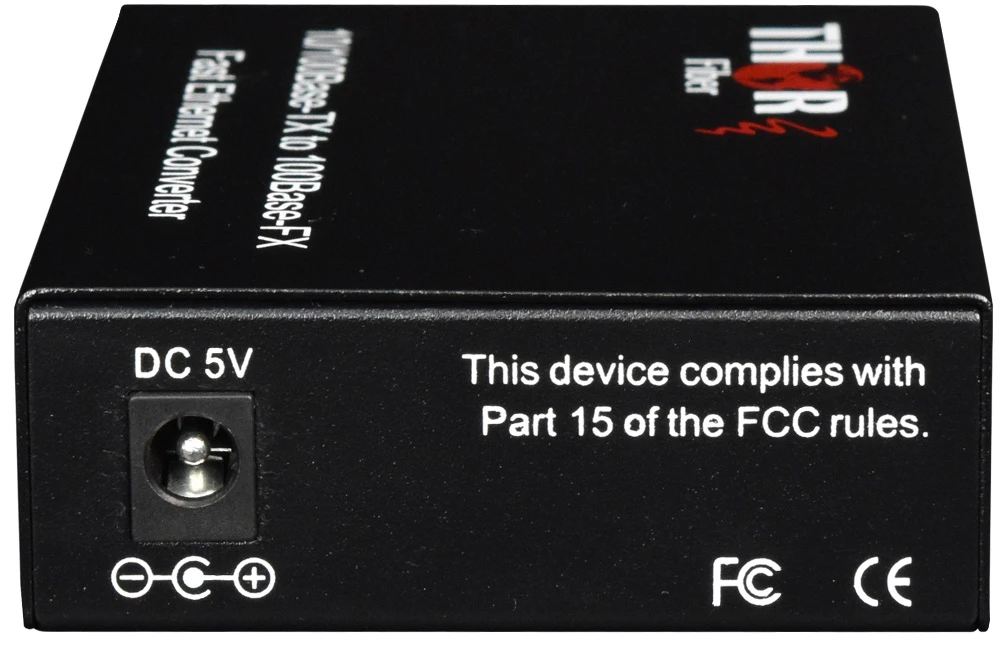

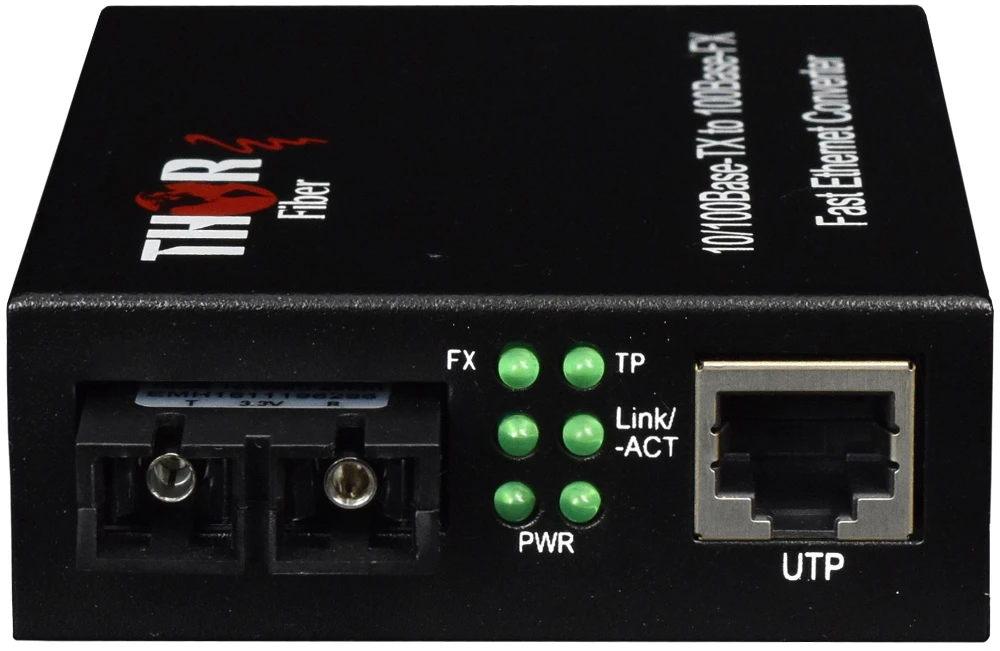

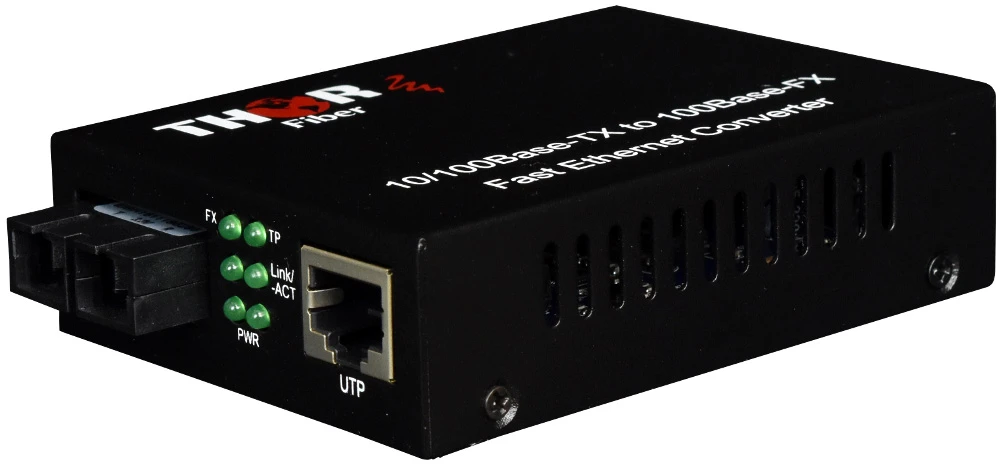

Thor Fiber F-FE-TR-SM Fast Ethernet 10/100 To Fiber Converter Transceiver For Singlemode Fiber

Thor Fiber F-FE-TR-SM Fast Ethernet 10/100 To Fiber Converter Transceiver For Singlemode Fiber - Image 2

Thor Fiber F-FE-TR-SM Fast Ethernet 10/100 To Fiber Converter Transceiver For Singlemode Fiber - Image 3

Thor Fiber F-FE-TR-SM Fast Ethernet 10/100 To Fiber Converter Transceiver For Singlemode Fiber

Original price was: $95.00.Current price is: $66.50.

SKU: BWFYA 61458338 Category: Ethernet Over Fiber Extenders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

F-FE-TR-SM – Overview

The Thor Fiber F-FE-TR-SM media converter is a cost-effective, feature-packed solution for expanding or extending an existing Ethernet/ Fast Ethernet network. Thor’s compact converter is enhanced with features like remote and local loop back testing, auto-negotiation, and link fault signaling for total reliability, It also features seven DIP switches for manual activation of the enhanced features. This gives the F-FE-TR-SM the ability to be quickly integrated into any network configuration. The Thor Fiber F-FE-TR-SM can support a variety of singlemode cables but comes standard with SC connectors and will extend your signal on singlemode fiber for 20km or (80/120km on custom orders) and has the flexibility to migrate to 100Base-FX networks. Several converters can be simultaneously installed by using the F-CHA 12-slot 19” rack-mount chassis for massive expansion.

Features:
- Compliant with IEEE 802.3 & 802.3u Fast Ethernet Standards
- LED Indication: Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/AC
- 10/100Mbps Auto Negotiation
- Auto cross over for TP port
- Support Link Alarm
- Support Switch mode & Pure converter mode
- Dual Port 10/100Mbps Switch inside
- Metal Case
- External Power Adapter
Specifications:
- Connector SC/PC Singlemode
- IEEE 802.3 10BaseT, 802.3u 100BaseTX/FX
- Mac Address Table 1 K
- Rate 10M 14,880pps
- Rate 1000M 148,800pps
- Transfer Rate 200 Mbps – Full Duplex
- Wave length 1310nm; 1550 or CWDM(model dependant)
- Fiber 100BaseFX: 1 x SC Duplex Connector
- Typical Distance: 20 Km(singlemode); (40km version available upon request + $25)(80km version + $50)
- Min Tx Power -5 dBm
- Max Tx Power -0 Bm
- Power DC 5V, 1.6A
- Ethernet 10/100BaseT: 1 x RJ45 Connector
- Sensitivity -30.0 dBm
- Power Consumption 5 W
- Operating Temperature 0° ~ 50° C
- Humidity 5% ~ 90% non-condensing
- Dimensions 71 x 97 x 26 mm(2.80 x 3.82 x 1.02 inches)
- Weight 0.6 Kg
- Approvals FCC Class A, CE
- Link Budget 11.0 dB
- Method Store and Forward
- Storage Temperature -20° ~ 60° C
