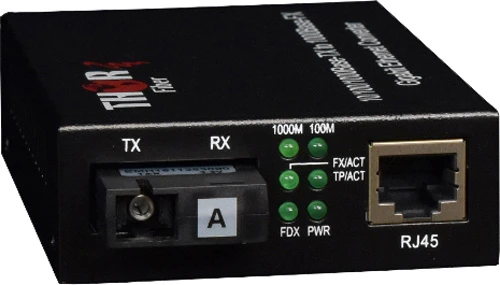

F-GET-TRS-A – Overview

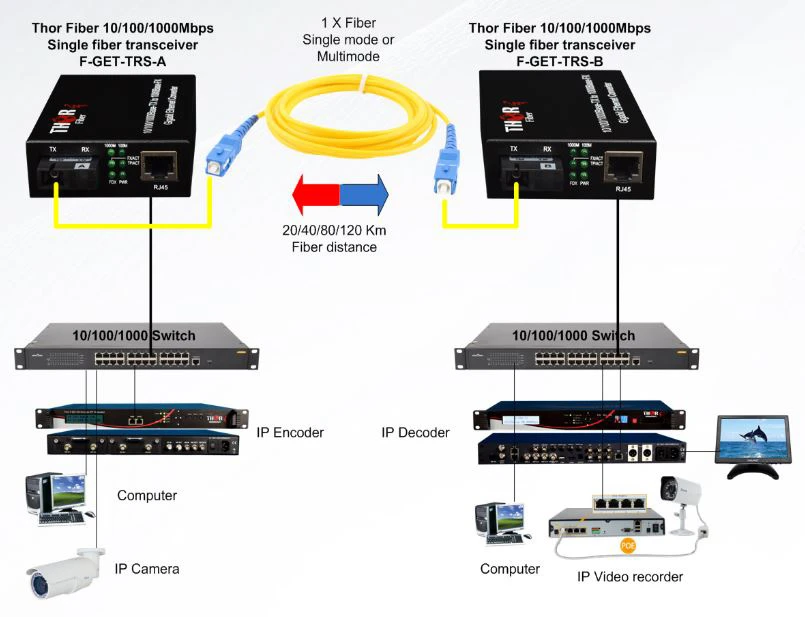

Thor Fiber’s F-GET-TRS-A Gigabit and Fast Ethernet Converters now allow you to use a single fiber for full duplex Ethernet over Glass conversions. Advanced Fiber transmission technology allows Thor to encompass all Data to be transmitted and received simultaneously in full duplex over a single fiber, multimode or singlemode. This means less cabling, more spare fibers, less cost on new projects and simple wiring means that you can launch full gigabit bi-directional data over a fiber using a simplex SC/PC connector. Each model is labeled as A or B; you need both to make a set. You can not connect two A models or 2 B models together; by creating the A and B model system we’re now able to use 2 wavelengths, 1310nm to send and 1550nm to receive information in a full duplex environment utilizing one fiber.
-
Features:
- Enhanced 10/100/100Base-T to 1000Base-FX Single Fiber
- Single fiber Media Converter, Transmitter (WDM TX1310nm/ RX1550nm)
-
Specifications:
- Connector: SC/PC SIMPLEX Connector
- IEEE: IEEE 802.3 10BaseT, 802.3u 100BaseTX/FX
- Mac Address Table: 1 K
- Rate 10M: 14,880pps
- Rate 1000M: 148,800pps
- Transfer Rate: 2000 Mbps – Full Duplex
- Wave length: 1310 nm for A side and 1550nm for B Side
- Fiber: 1000BaseFX: 1 x SC Simplex Connector
- Typical Distance: 3000 feet for multimode version 20km for singlemode; (optional 40 or 80km add)
- Min Tx Power: -8 dBm for 20km version
- Max Tx Power: -0 dBm for 80/120Km version
- Power: DC 5V, 1.6A
- Ethernet: 10/100BaseT: 1 x RJ45 Connector
- Sensitivity: -30.0 dBm for 80/120Km , -25dBm for 40Km version, -18 dBm for 20Km version
- Power Consumption: 5 W
- Operating Temperature: 0° ~ 50° C
- Humidity: 5% ~ 90% non-condensing
- Dimensions: 70 x 95 x 26 mm(2.75 x 3.74 x 1.02 inches)
- Weight: 0.6 Kg
- Approvals: FCC Class A, CE
- Link Budget: 10.0 dB /20Km 15db/40Km, 27db/80Km 35db/120Km
- Storage Temperature: -20° ~ 60° C
