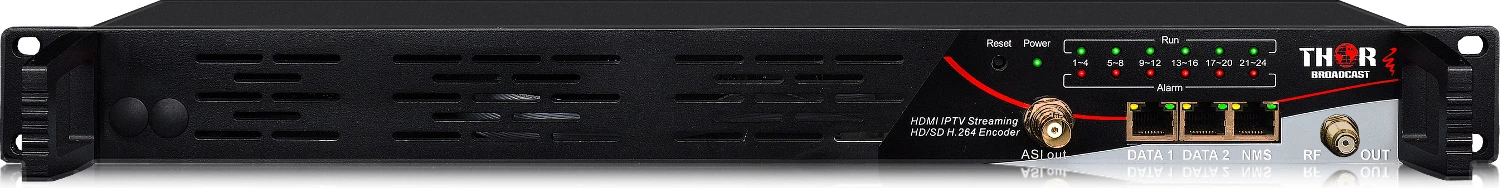

Thor Fiber H-12HDMI-QAM-IPLL 12 HDMI Input To CATV RF QAM Output And IPTV Output

Original price was: $351.00.Current price is: $99.99.

SKU: BWFYA 62975702 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

H-12HDMI-QAM-IPLL – Overview

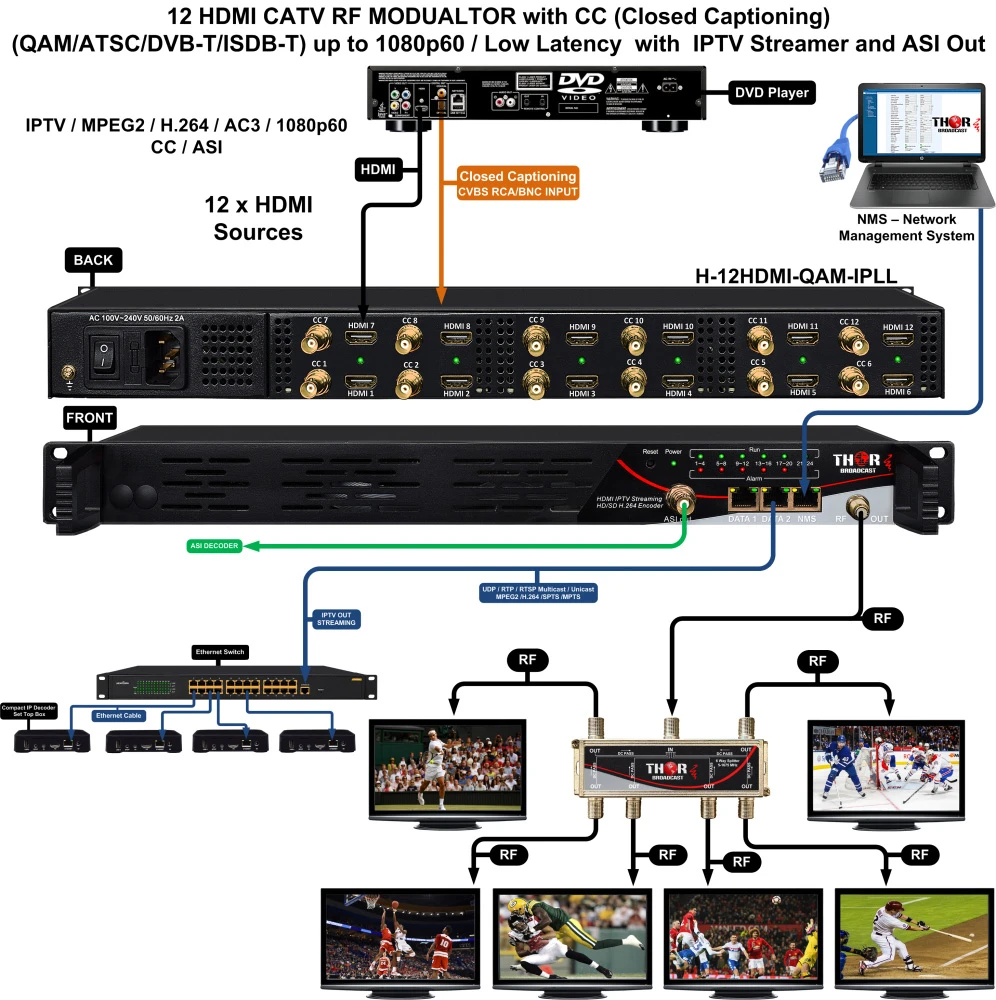

The high capacity H-12HDMI-QAM-IPLL Encoder Modulator from Thor Broadcast has a sophisticated redesigned platform for enabling modulation of up to 12 HDMI sources and 12 CVBS CC(Closed Caption) sources simultaneously. This unit has the ability to ingest IP Transport Streams and multiplex them among the RF output channels, similarly you can also input a single ATSC(or other RF modulation standard) and add its transport streams among the QAM output. This unit comes standard with a plethora of options to help you add extra transport streams from various media to build your own RF headend quickly and easily without extra hardware. The H-12HDMI-QAM-IPLL supports MPEG2 and MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II audio encoding (MPEG-2 AAC, MPEG-4 AAC Optional), Dolby Digital AC3, as well as AC3 pass through. This unit has the ability to multiplex, create, and add program streams to your RF QAM cable channels cost-effective design make this device widely used in variety of digital distribution systems such as CATV headend cable systems, creating your own digital signage systems, and adding HDMI sources to your existing QAM cable system in a single 1RU high density encoder modulator from Thor.

Features:

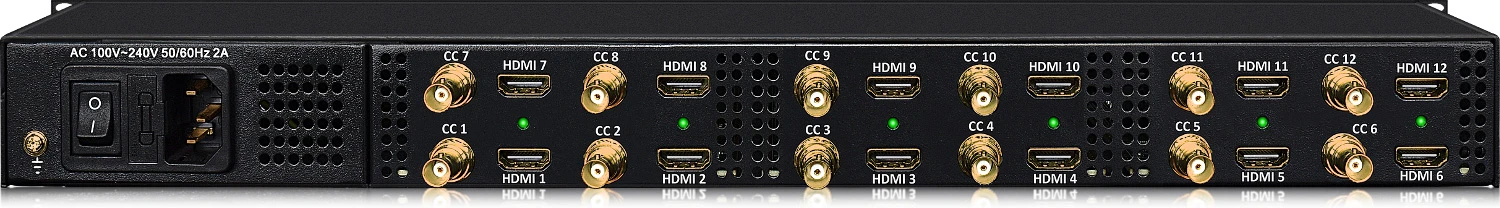

- 12 HDMI inputs with 12 CC inputs via CVBS
- (Data 1 port) over UDP and RTP
- MPEG1 Layer II; Dolby AC3, AC3 pass through ; MPEG-2 AAC, MPEG-4 AAC
- HD (1080i/720p) to SD (576p/480p) downscale conversion
- 1MPTS and 24 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP
- ASI output mirrors one of the RF carriers
- PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
- Control via web management NMS
- 16 Groups Multiplexing/Scrambling/ DVB-C QAM ANNEX A and B Modulating (based on RF)
- 8 Groups Multiplexing/ DVB-T/ATSC Modulating (based on RF)
- 6 Groups Multiplexing / ISDB-T Modulating (based on RF)
- Up to 16 MPTS IP (Data2 Port Only) output over UDP, RTP/RTSP (# of MPTS is based on RF standard of device) (16MPTS for DVB-C; 8MPTS for DVB-T/ATSC; and 6MPTS for ISDB-T)
Specifications:
- Resolution Downsacle: 1080i/720p to 576p/480p
- Encoding: MPEG2 & MPEG4 AVC/H.264
- Bit-rate: 0.8~19Mbps each channel
- Rate Control: CBR/VBR
- Audio Encoding: MPEG1 Layer II, AC3 pass through
- Sampling rate: 48KHz
- Audio Gain: 0-400% adjustable
- Bit-rate: 64~320Kbps each channel (each channel)
- Function: PID remapping (automatically or manually)
- Accurate: PCR adjusting
- Generate: PSI/ SI table automatically
