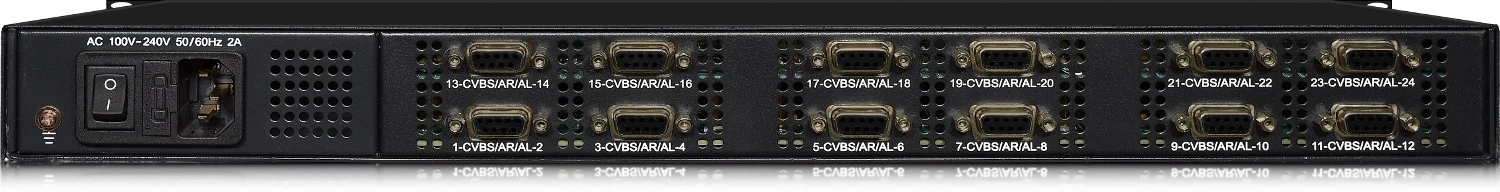

Thor Fiber H-24AV-QAM-IP High Density Encoder Modulator With Up To 24 Inputs For CVBS Video Via An RCA Connector - Image 2

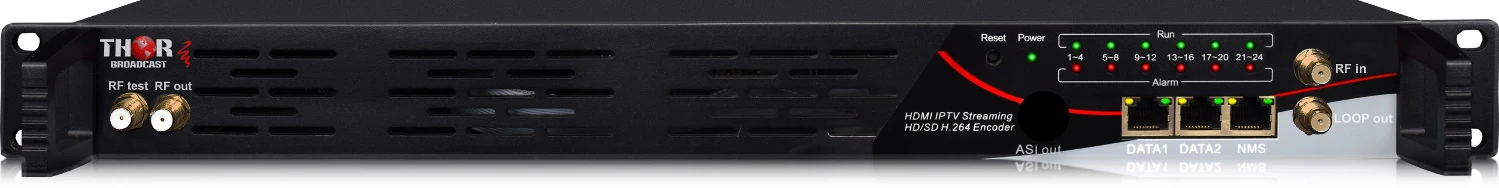

Thor Fiber H-24AV-QAM-IP High Density Encoder Modulator With Up To 24 Inputs For CVBS Video Via An RCA Connector - Image 3

Thor Fiber H-24AV-QAM-IP High Density Encoder Modulator With Up To 24 Inputs For CVBS Video Via An RCA Connector

Original price was: $379.00.Current price is: $98.99.

SKU: BWFYA 70331700 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

24AV-QAM-IP – Overview

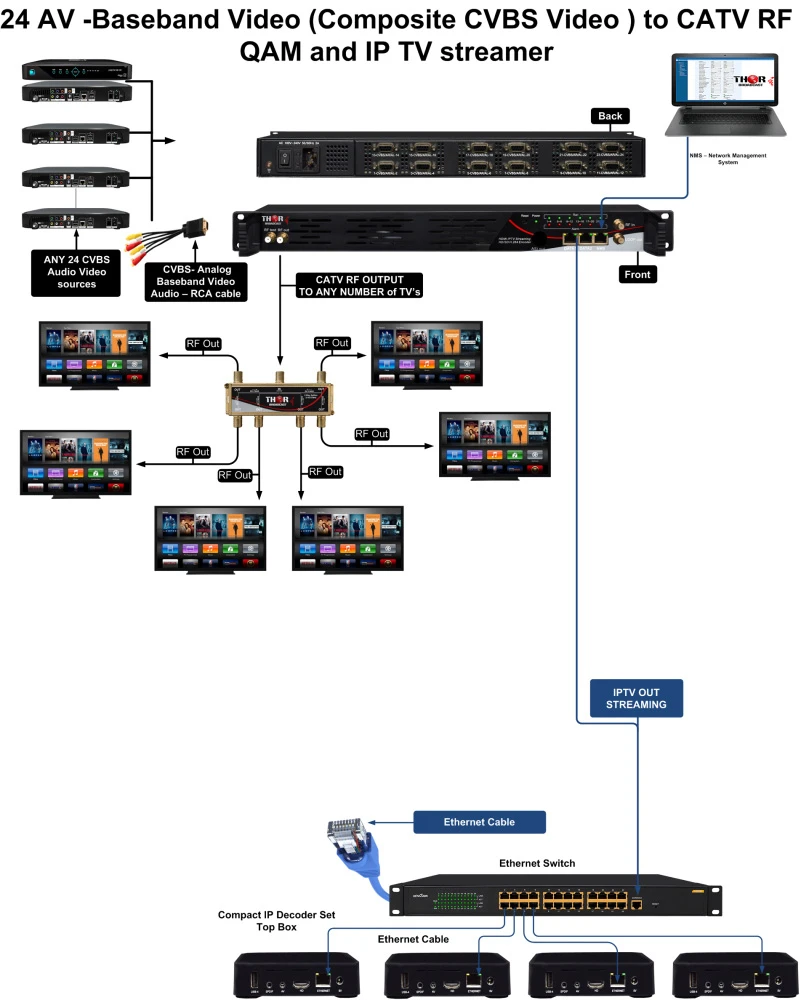

The H-24AV-QAM-IP is a 24 channel CVBS -composite analog video / audio to QAM digital modulator and IPTV streamer. Robust 1RU system for building a whole headend in as little rack space as possible. This flexible chassis allows for outputting all of your inputs onto RF and IP simultaneously. This high density unit also allows for PID remapping automatically or manually with up to 180 pids per channel. Utilizing only MPEG2 video with CBR and VBR means your CVBS input signals will benefit from noise reduction and de-interlacing to continously provide your content in a fluid manner. This unique encoder modulator also allows you to input up to 128 STPS streams for modulation onto RF; the multiplexing chassis will put these streams into your RF channel lineup for you which can also include a digital logo stamp on the streams. The Gigabit interface allows up to 4 MPTS streams output simultaneously. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel CATV Headends, entertainment systems in sports bars, hospitals, apartment complexes.

Features:
- 8/12/16/20/24 A/V CVBS inputs with MPEG2 Encoding – Modulated 4 RF output – and 4 MPTS’s IP TS ouput
- MPEG1 Layer II, AC3(2.0) Audio encoding and supports audio gain adjustment
- 1DVB-C tuner input for re-mux (only for DVB-C RF out version. Suitable for India market.)
- 128 IP input over UDP and RTP protocol
- 4 groups of multiplexing/scrambling/modulation output channels
- PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
- 4 MPTS IP (DATA1 port only) output over UDP and RTP
- 4 DVB-C or DVB-T RF output
- CC (closed captions)
- Supports QR code, LOGO, OSD insertion
- Control via web management, and easy updates via web
- Lowest cost per channel, breakthrough price
Specifications:
- Encoding: MPEG-2
- Bit-rate: 0.5Mbps~8Mbps each channel
- Rate Control: CBR, VBR
- GOP Structure: GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B
- Advanced Pretreatment: De-interlacing, noise reduction
- Encoding: MPEG-1 Layer 2, AC3 (2.0)
- Sampling rate: 48KHz
- Resolution: 24-bit
- Bit-rate: 64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel
- Maximum simulcrypt CA: 4
- Standard: ETR289, ETSI 101 197, ETSI 103 197
- Connection: Local/remote connection
- RF out: 4x RF DVB-C out
- Standard: EN300 429/ITU-T J.83A/B
- RF frequency: 50~960MHz, 1KHz step
- RF output level: -25 ~ -1dbm (82~106 dbµV), 0.1db step
- Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
- Constellation: 16/32/64/128/256QAM
