Thor H-IPRF-16QAM IP To 16 RF Agile QAM Edge Modulator

Original price was: $304.00.Current price is: $96.99.

SKU: BWFYA 56325269 Categories: Digital CATV & RF Distribution, RF Modulators

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

H-IPRF-16QAM – Overview

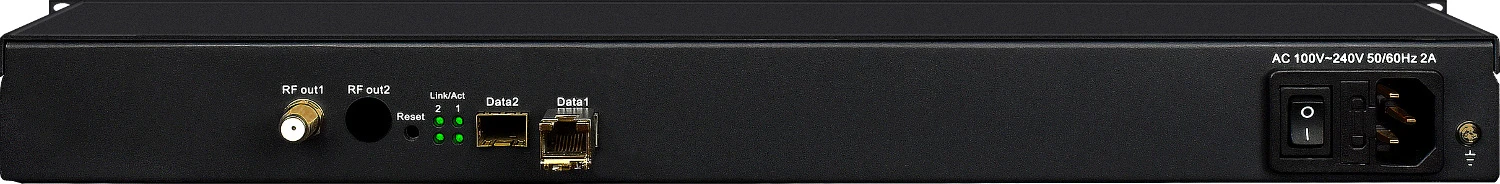

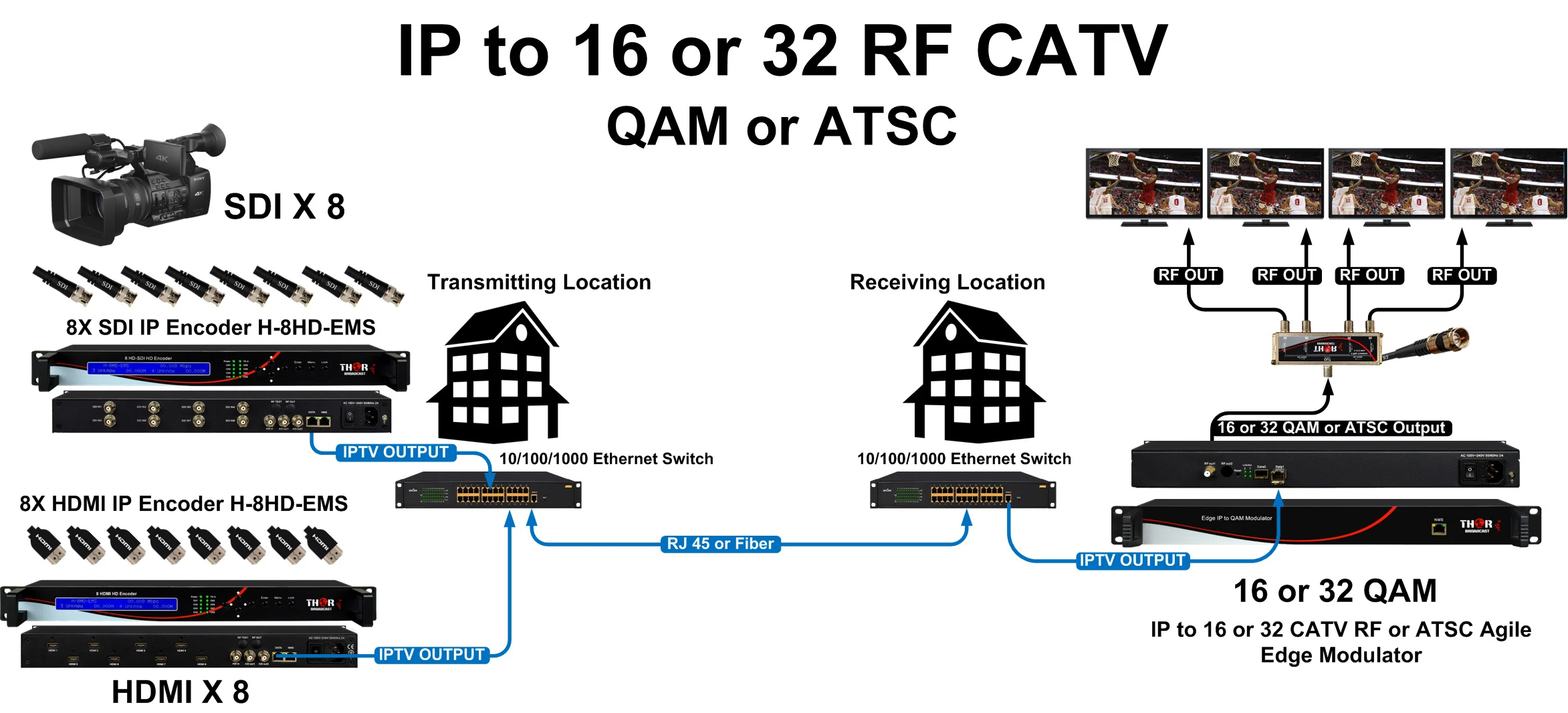

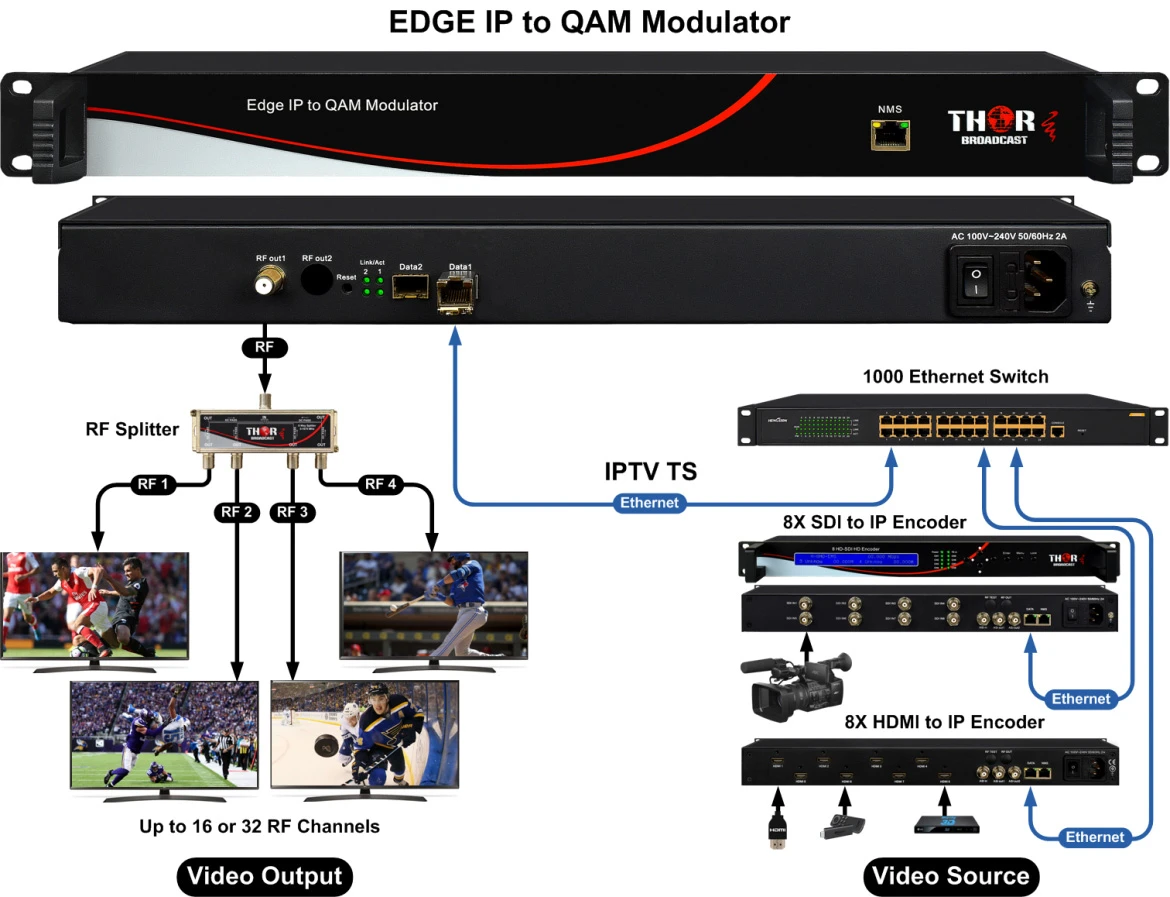

The H-IPTV-16QAM modulator is a simple all-in-one utility device to convert up to 1024 IP Transport Streams in UDP / RTP into 16 non-adjacent QAM Channels. This Thor Broadcast high-density IP to QAM modulator is designed to take content delivered via an IP backbone or CDN system and modulate the programming onto digital QAM cable channels for distribution over coax. This product includes a 1RU chassis supporting two individual Ethernet inputs injecting up to 840Mbps on each Ethernet RJ45 connector outputs That all programming onto a single RF F-Type connector for easy output into your RF Coax infrastructure. This single RU form factor allows you create your own IP to RF headend in a single chassis. All QAM Channels and IP inputs are managed from the easy to use NMS RJ45 port connection on the front of the unit allowing you to quickly and easily access your programming from Thor’s easy to read GUI That can be accessed from anywhere on your network. The IPTV programming input is standard headend format, meaning basic UDP / RTP unicast/multicast IGMP v2 / v3 addresses and port format. This impressive density allows a single chassis to convert an IPTV Ethernet backbone feed to be converted to a full lineup of digital cable DVB-C channels for easy distribution.

Features:
- IPTV Modulator includes 2x Gigabit Ethernet input interfaces
- 16 Clear QAM Channel Outputs – Non-Adjacent 50-960Mhz
- Maximum 1024 Channels TS over UDP, RTP & Unicast / Multicast
- Output Of RF on 16 Multiplexed, Scrambled, or QAM (DVB-C) Channels
- Gigabit Ethernet is serviced by SFP interface
- Supports Unicast and Multicast, supports IGMP v2 / v3
- Max 840Mbps for each GE Input
- Supports Up to 180 PIDs per channel with PID remapping (manual or auto)

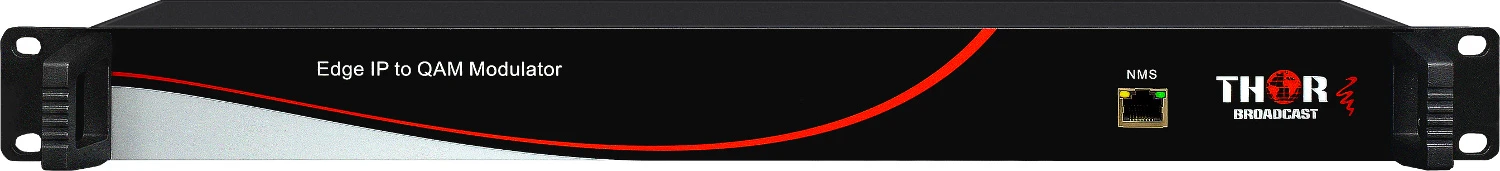

- Web NMS Network Management Software for easy online access and management
Specifications:
- Input: 512 × 2 IP inputs, 2x 100 / 1000M Ethernet port (SFP)
- Transport Protocol: TS over UDP / RTP unicast and multicast, IGMP V2 / V3
- Transmission Rate: Max 840Mbps for each input GE
- Mux: Channel input: 1024; Output Channel – 16
- Max PIDs: 180 per channel
- Max simulscrypt CA: 4
- Scramble Standard: ETR289, ETSI 101 197, ETSI 103 197
- Connection: Local / remote connection
- QAM Channel: 16 non-adjacent carriers
- Modulation Standard: EN300 429 / ITU-T J.83A / B
- Symbol Rate: 5.0 – 7.0Msps, stepping 1ksps
- Constellation: 16, 32, 64, 128, 256QAM
- FEC: RS (204, 188)
- Interface: 1 F-type output for 16 carriers, 75Ω impedance
- RF Range: 50 – 960MHz, stepping 1kHz
- Output Level: -20dBm – + 10dBm (- 87 117db?V), 0.1dB stepping
- ACLR: -60 dBc
- TS output: 16 IP output over UDP / RTP / RTSP, unicast / multicast, 2 x 100 / 1000M Ethernet Ports
- System – Network Management Software (NMS)
- Dimensions (W x L x H): 16.5″ × 17.3″ × 1.75″
- Weight: 10lbs
- Operating Temperature: – 0 – 45° C
- Storage Temperature: -20 – 80° C
- Power Supply: AC 100V ± 10%, 50 / 60Hz or 220V AC ± 10%, 50 / 60Hz
- Power Consumption: 15.4W
