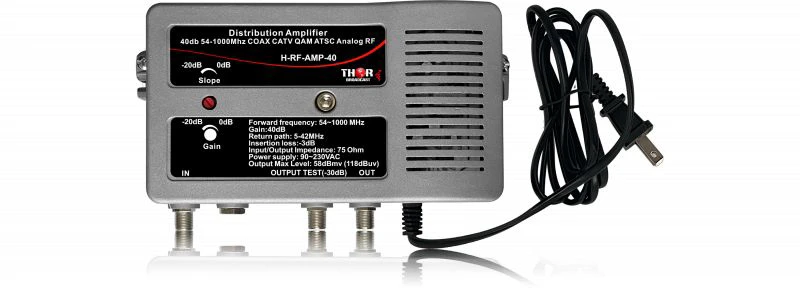

Thor H-RF-AMP-40 40db CATV RF Distribution Amplifier - Forward 54-1000MHz - Return 5-42MHz

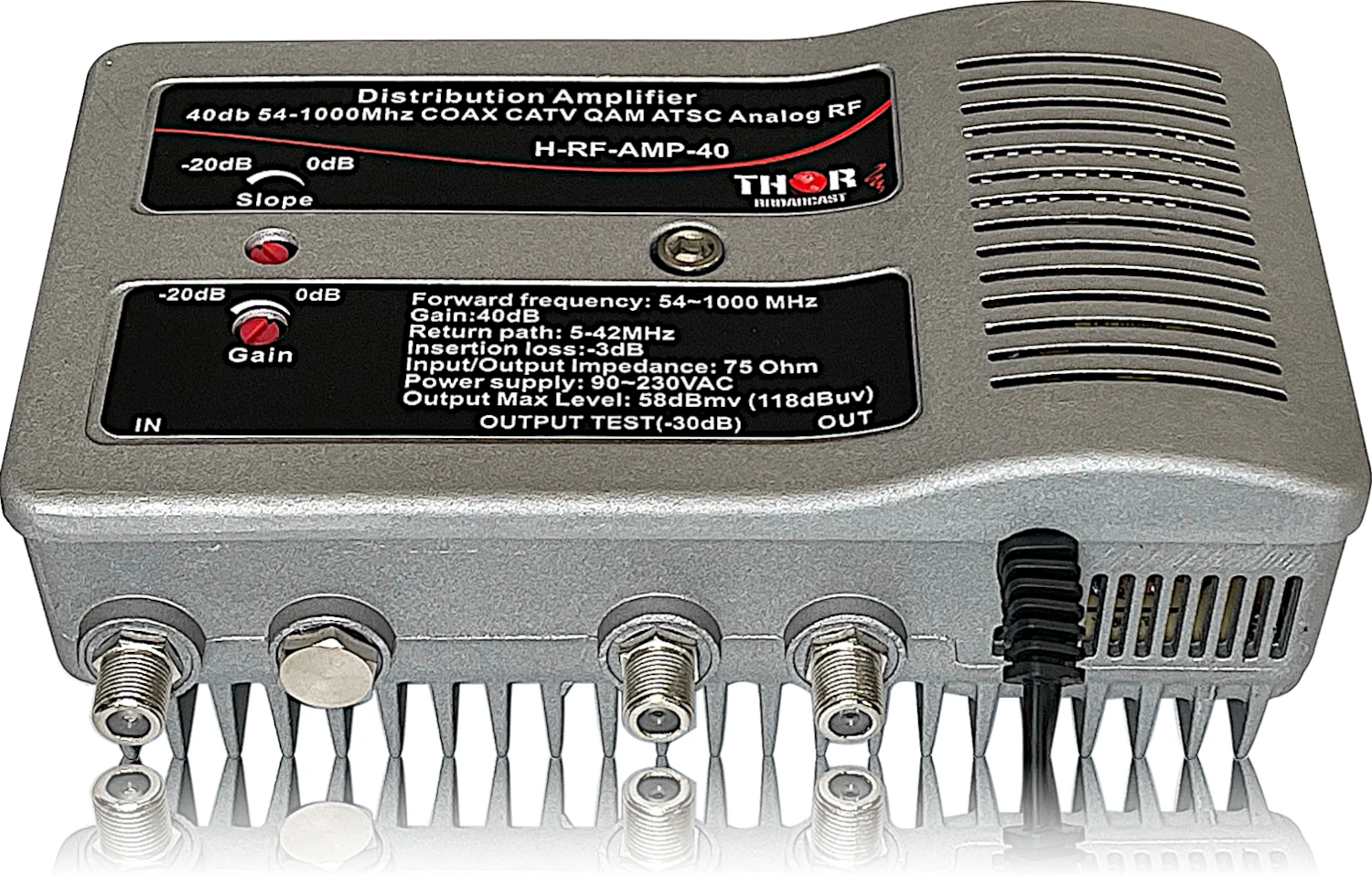

Thor H-RF-AMP-40 40db CATV RF Distribution Amplifier - Forward 54-1000MHz - Return 5-42MHz - Image 2

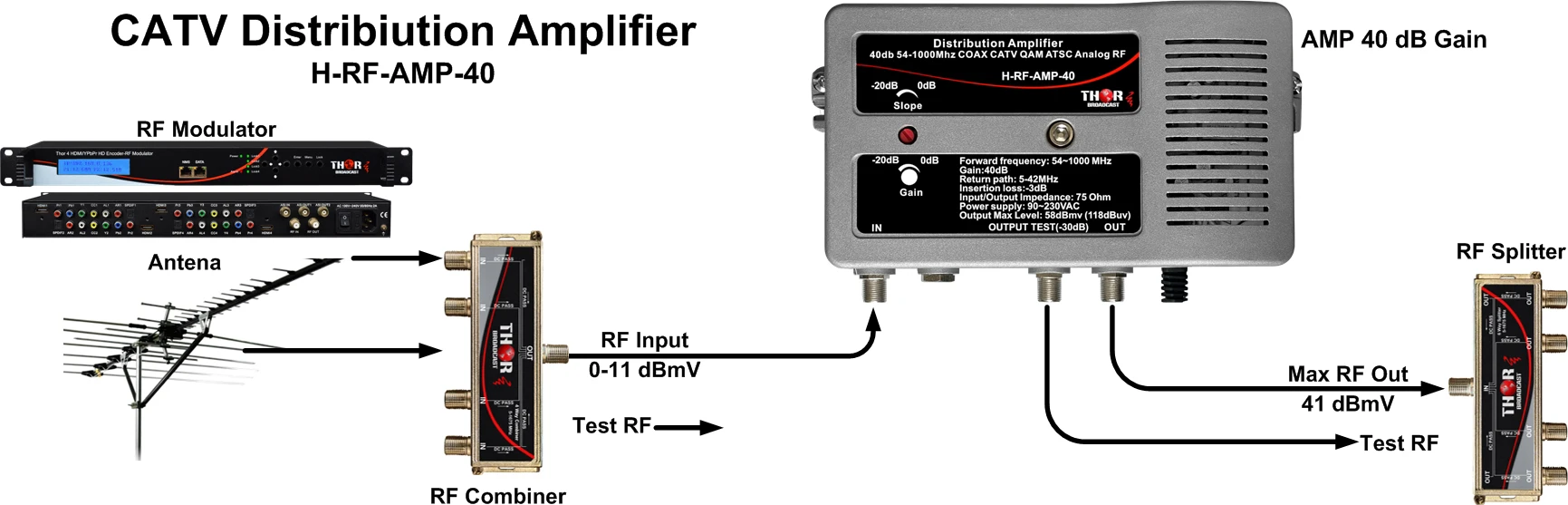

Thor H-RF-AMP-40 40db CATV RF Distribution Amplifier - Forward 54-1000MHz - Return 5-42MHz - Image 3

Thor H-RF-AMP-40 40db CATV RF Distribution Amplifier – Forward 54-1000MHz – Return 5-42MHz

Original price was: $295.00.Current price is: $98.99.

SKU: BWFYA 94241702 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

H-RF-AMP-40 – Overview

This Thor H-RF-AMP-40 amplifier makes an excellent distribution system amplifier for heavily loaded MDU and broadband CATV and SMATV systems. Because of its extremely low-noise figure and low distortion, the H-RF-AMP-40-RM is ideally suited for use in larger networks where amplifier cascading is required.

Applications:
– CATV RF QAM over coax amplification
– The 40dB gain from off air antenna ATSC / DVB-T / ISDB-T
– Analog RF – NTSC / PAL video amplification

Features:
- High output level 40 dB
- High Voltage Surge Protection
- Broadband 54-1000MHz frequency range (Channels CATV 2-158)
- High Return Loss against interference
- Power LED indicator
- Optimum for Trunk Distribution
- Hybrid module design to obtain excellent quality
- Adjustable gain and slope for fine tuning systems
- -20 dB test ports for easy trouble shooting
- 60 dBmV high output level
- 40 dB gain for optimal carrier-to-noise ratio and superior picture quality
- ± 0.5dB flatness across band provides low distortion and excellent frequency response
- Employs state-of-the art hybrid push-pull technology for distortion-free audio-video quality
- Adjustable slope and gain controls for easy system balancing
- Easy-access controls and lowloss (-20dB) test point enable simplified setup and performance monitoring
- Shielded enclosure provides over 95dB RFI shielding performance reducing leakage and ingress
- Built-in lightning and line voltage surge protection protects the unit from damage
Specifications:
- Bandwidth-CA-30/1000: 54 ~ 1000MHz
- Bandwidth-CA-30/550: 54 ~ 550MHz
- Gain (FWD) 54~1000 MHz: 30dB
- Gain (FWD) 54~550 MHz: 30dB
- Max. Output (158 ch.) (CA-30/1000): 40 dBmV
- Max. Output (82 ch.) (CA-30/550): 43 dBmV
- Flatness: 0.5dB
- Noise Figure (FWD) CA-30/1000: 5dB
- Noise Figure (FWD) CA30/550: 4.5dB
- Composite Second Order (FWD): 70dB
- Composite Triple Beat (FWD): 61dB
- Input Test Point Loss: 20dB
- Power Input: 115VDC
- Power Required: 4Watt
- Dimensions: 8″ L) x 2.75″ (D) x 4.5″ (H)
- Weight: 2.3 lbs.
- Input Frequency Range: 50~860 MHz
- Output Max Level: 60 dBmV
- Maximum Gain: 32 dB
- Gain Control Range: 0 ~ -20dB
- Slope Control Range: 0 ~ -20dB
- Noise Figure: 7.5 dB
- Flatness: +/-2 dB
- Return Loss: 18 dB
- Input / Output Impedance: 75 ohm
- Input / Output test point: -20 dB
- Connectors: All “F” type female
- Power requirements: AC 110V or AC 220V
- Power Consumption: 10 W
- Operating Temperature: -10 ~ 60 °C
Item Includes:
- 1x Thor H-RF-AMP-40 40db CATV RF Distribution Amplifier – Forward 54-1000MHz – Return 5-42MHz
