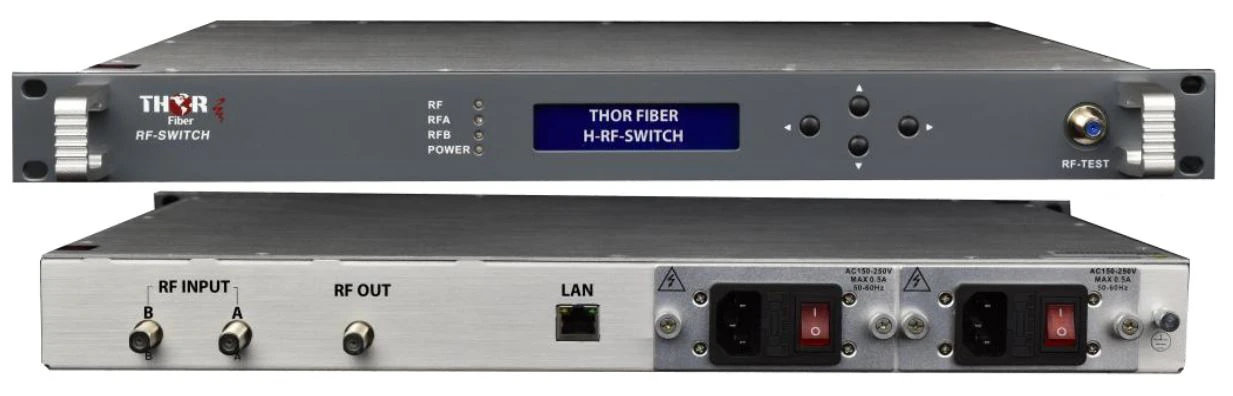

Thor H-RF-SWITCH 2x1 Redundant CATV 5-1000Mhz RF Switch

Thor H-RF-SWITCH 2x1 Redundant CATV 5-1000Mhz RF Switch - Image 2

Thor H-RF-SWITCH 2x1 Redundant CATV 5-1000Mhz RF Switch -CableSupply shop THR H RF SWITCH 1

Thor H-RF-SWITCH 2×1 Redundant CATV 5-1000Mhz RF Switch

Original price was: $347.00.Current price is: $95.99.

SKU: BWFYA 41827278 Categories: Digital CATV & RF Distribution, RF Distribution Amplifiers

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

THR-H-RF-SWITCH – Overview

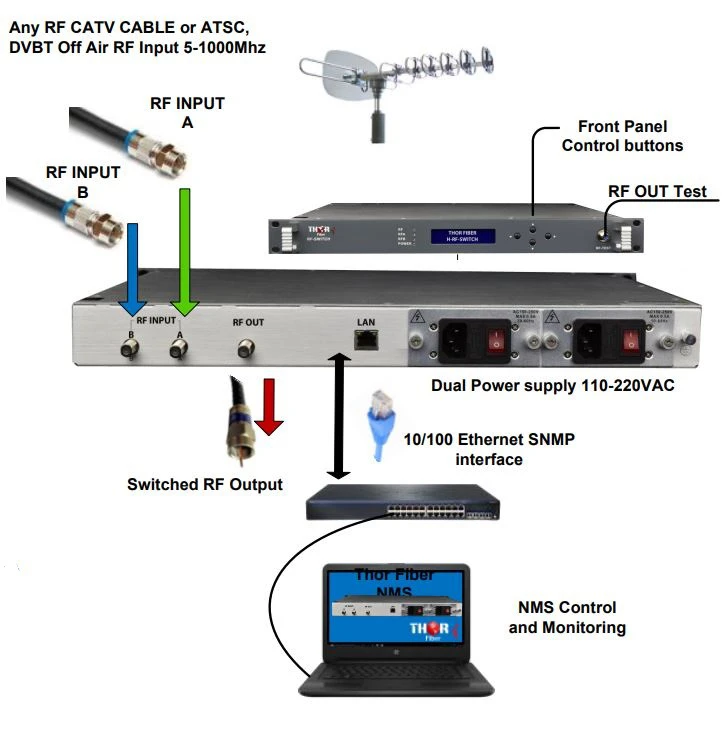

Thor H-RF-SWITCH RF switch is used for signal distribution redundancy or for remote RF switching. Thor’s RF Switch has two inputs and a single output. One of the inputs acts as the primary channel while the second is used for fallover protection. When the switch detects that the incoming RF to the primary channel has dropped below a set reference level the unit will immediately switch to the backup channel. The unit can also be switched manually by either its front control panel or remotely via Ethernet SNMP. Thor’s unit features full remote management for setting system parameters an system monitoring.

Features:
- High resolution of RF monitor
- Standard 10/100 Ethernet RJ45 communication interface
- Integrate SNMP network management function. The switch mode is automatic or manual.
- Switch reference level can be set through front panel or Internet. Main application
- CATV RF switching, redundancy backups. RF control system. Laboratory.
Specifications:
- Operating bandwidth(MHz): 5 ~1000
- Input level range (dBæV): 50~130
- Control level range (dBæV): 60~120
- Resolving capability (dB): ≤0.5
- Switch mode: AGC & MGC
- Switch time (ms): ≤10
- Insertion loss(dB): 0.5
- Flatness (dB): ≤0.5
- Return loss(dB): ≥16
- Impedance (Ω): 75
- RF connector: F-female, or by request
- SNMP Network management: RJ45
- Power supply (V): 95~250VAC , Optional -48VDC(30~60VDC)
- Power consume (W:): 10
- Operating temp. (C): 5~65
- Relative humidity (%): 5~95
- Size: 19×10.5×1.75(W)x(D)x(H
Item Includes:
- 1x Thor H-RF-SWITCH 2×1 Redundant CATV 5-1000Mhz RF Switch
