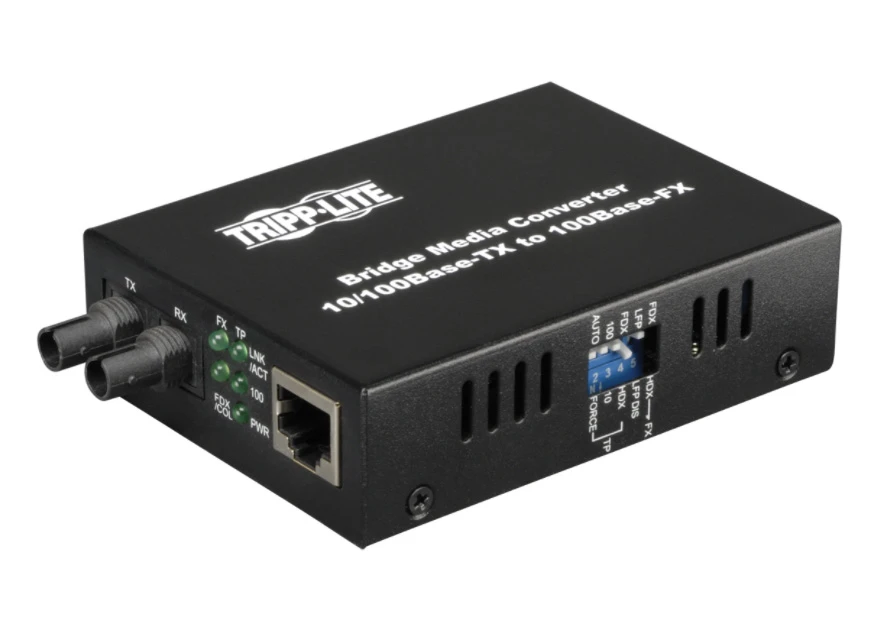

N784-001-ST – Overview
Tripp Lite’s N784-001-ST, 10/100 Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable).
-
Features:
- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Switch selectable half or full duplex operation on the fiber port
- Fiber lengths up to 2Km

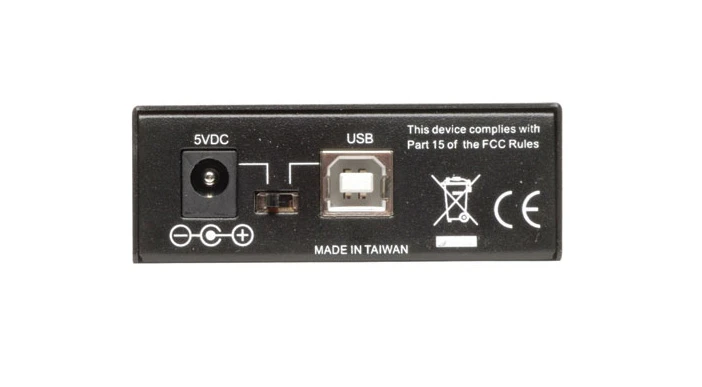

- 2 Power Choices – AC-DC Adapter or USB
- 5 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75″L x 2.75″W x 1″H
- Wavelength: 1310nm
- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
-
Specifications:
- Product Type: Fiber to Ethernet
- Technology: Cat5/5e; Multimode
- Mode Type: Multimode
- Accessories (Included): External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
- Network Ports: RJ45 (FEMALE); ST (FEMALE)
- AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
- External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.2A
- External Power Supply Output Specs (V / A): 5V, 2A
- External Power Supply Cord Length (ft.): 4.53
- External Power Supply Cord Length (m.): 1.38
- DC Barrel Plug: OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
- External Power Supply Plug(s): NEMA 1-15P North America
- Color: Black
- Power Cord Color: Black
- Shipping Dimensions (hwd / in.): 9.25 x 2.17 x 4.92
- Shipping Weight (lbs.): 0.94
- Unit Dimensions (hwd / in.): 1.00 x 2.95 x 3.74
- Unit Packaging Type: Box
- Unit Weight (lbs.): 1.00
- Housing: Metal
- Operating Temperature Range: 32 to 122°F (0 to 50°C)
- Storage Temperature Range: -4 to 158 F (-20 to 70 C)
- Relative Humidity: 5 to 90% RH, Non-Condensing
- Network Compatibility: 10 Mbps; 100 Mbps (Fast Ethernet)
- Network Speed Details: 10 Mbps; 100 Mbps
- Wavelength: 1310nm
- Transmission Distance: 2 km
- Side A – Connector 1: RJ45 (FEMALE)
- Side B – Connector 1: ST DUPLEX (FEMALE)
- Data Transfer Rate: 10 Mbps; 100 Mbps
- Auto MDIX Support : Yes
- DIN Mountable: No
- Working Mode: Full/Half Duplex
- Optical Port: ST
- Certifications: CE, FCC, RoHS
- External Power Supply Certifications: CE; FCC; cUL; WEEE
-

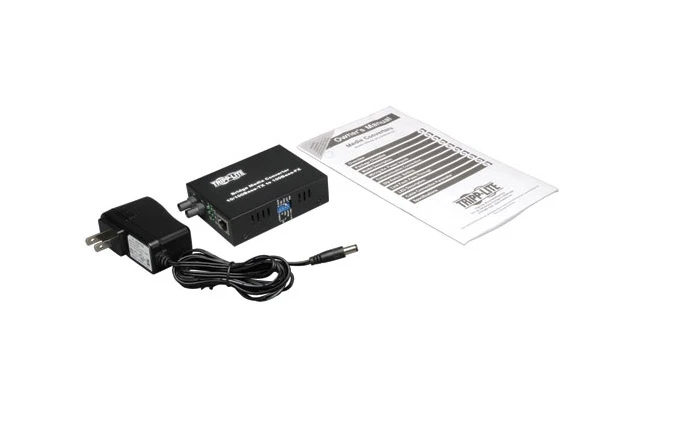

Item Includes:
- 10/100 Media Converter, UTP – ST
- External Power Supply with NEMA 1-15P Plug ( 100-240V )
- Owner’s Manual
-
Warranty:
- 1 Year
-
GTIN:
0037332130907
