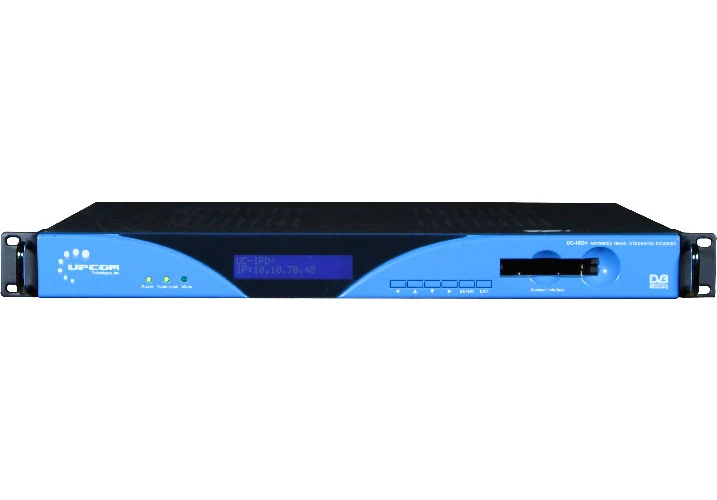

UC-350E – Overview
The UC-350E+ SD MPEG-2/4 ENCODER is a broadcast-level real-time encoder compatible with MPEG-2 and MPEG-4 DVB standards. It is designed for TV broadcasting, news contribution, content delivery, distribution and DTH applications. The UC-350E+ SD MPEG-2/4 ENCODER model includes SDI and Analog Inputs and allows for the use of standard IRD’s. It also includes an ASI input with RE-MUX option, allowing to daisy chain encoders. UC-350E+ encodes one video signal and up to two different audio channels (2 stereo) at the same time, as well as supports MPEG-1 Audio layer 2, LC-ACC, HE-AAC. A wide range of data rates are supported including: (0.25~10Mbps for H.264 encoding, and 0.5~15Mbps for MPEG-2 encoding).
-
Features:
- H.264/MPEG-4 AVC level 4.0 video encoding
- MPEG-2 video encoding
- MPEG-1 Audio Layer II audio encoding
- LC-AAC audio encoding
- UDP and unicast/multicast output support
- Composite video input
- SDI digital video input
- 4 XLR and 4 RCA audio inputs
- PAL and NTSC SD video formats

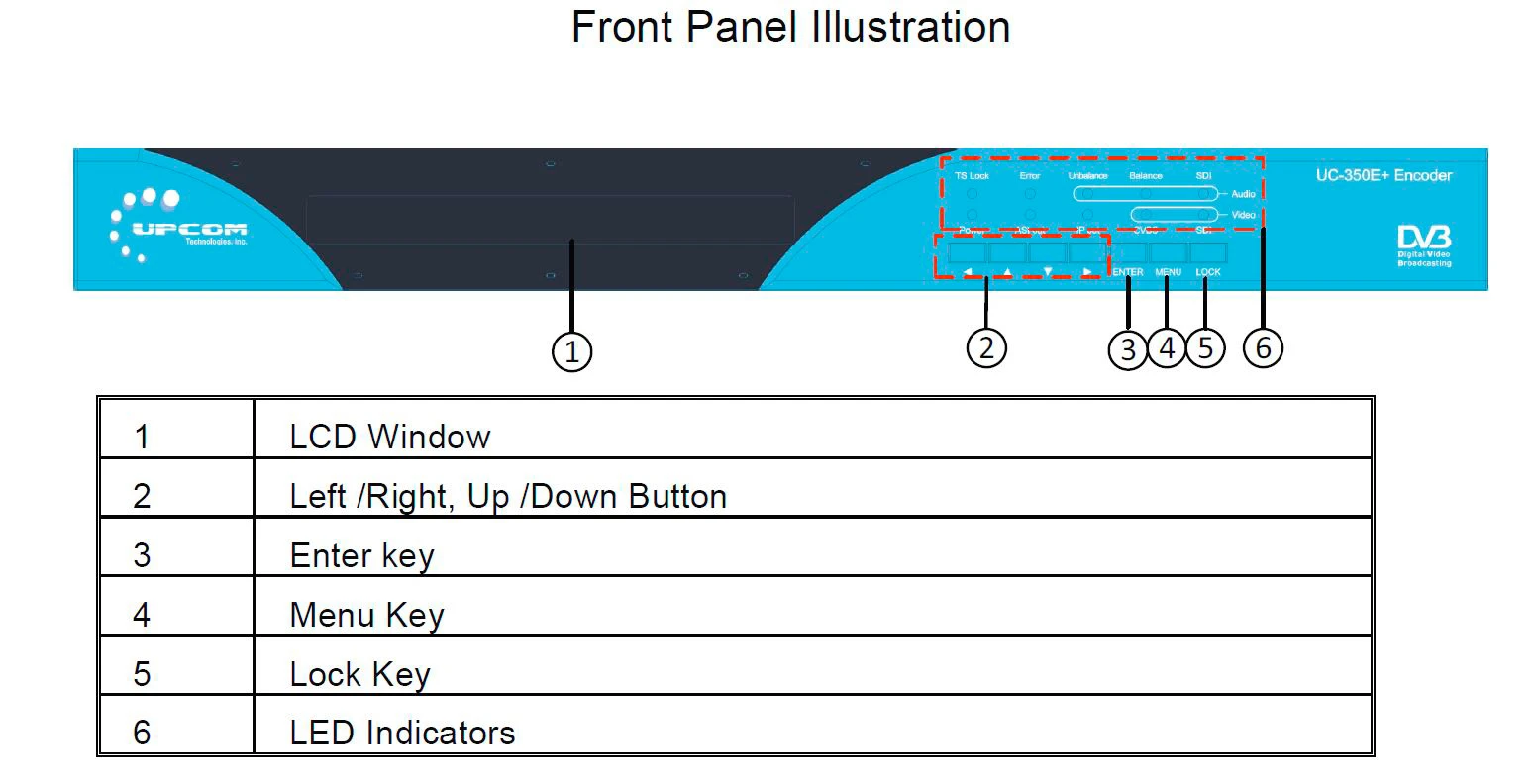

- Front Panel and Software control
- IP Output
- Two Year Factory Warranty
-
Specifications:

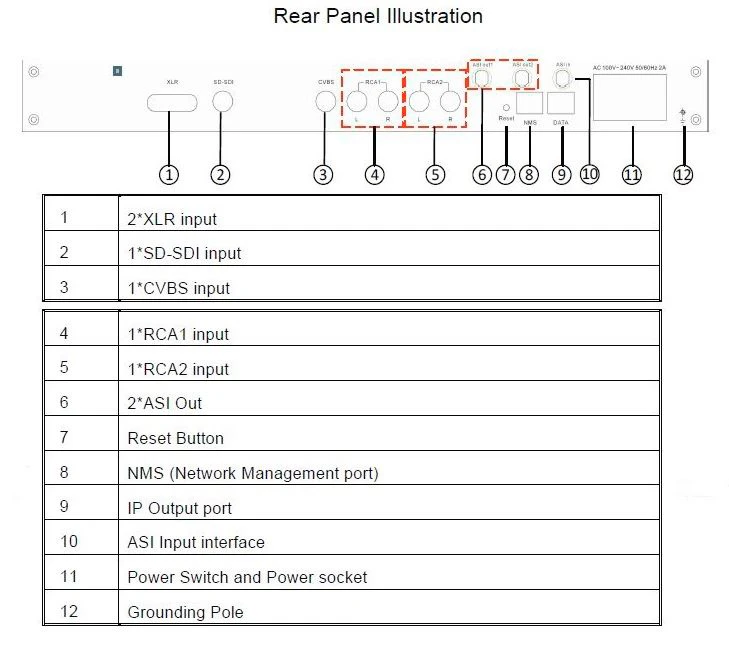

- Video input:1 x Analog CVBS BNC connector, 1 x SD-SDI BNC connector.
- Audio input:Analog stereo audio(balanced) XLR interface, Analog stereo audio(unbalanced) BNC interface, SD-SDI embedded audio.
- Video Resolution: 720 x 576, 352 x 288, 320 x 240, 320 x 180, 176 x 144, 160 x 120, 160 x 90 @50Hz (PAL), 720 x 480, 352 x 288, 320 x 240, 320 x 180, 176 x 144, 160 x 120, 160 x 90 @59.94Hz (NTSC).
- Video Encoding:MPEG-2, H.264/MPEG-4 AVC level 4.0 on SD.
- Video Bit Rate: 0.25Mbps~15Mbps MPEG-4, 0.25Mbps~15Mbps MPEG-2.
- Video Rate Control: CBR/VBR.
- GOP Structure: IBBP.
- Audio Encoding: MPEG-1 Layer 2, LC-AAC.
- Audio Sampling Rate: 48KHz.
- Audio Resolution: 24-bit.
- Audio Bit Rate: 64Kb/s~384Kb/s each channel.
- Stream output: 2 x ASI outputs BNC connector, IP STREAMING (Unicast/Multicast).
- Dimensions: 19″W 2″H 18″D .
- Weight: 9 lbs.
- Operating Temperature: 0~45C .
