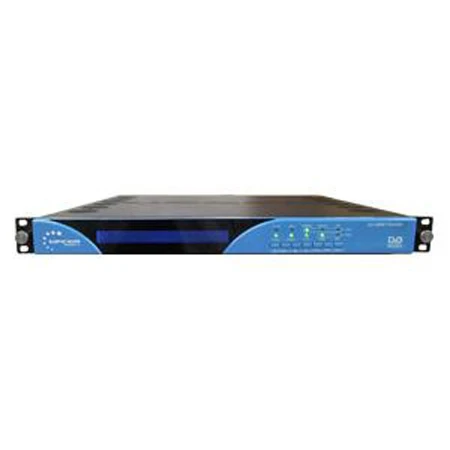

UC-IRD-TSX – Overview
Upcom Technologies’ line of high-quality Advanced HD/SD Integrated Receivers, such as the UC-IRD-TSX, has been designed as a feature rich and flexible platform to be used on contribution, distribution and mobile broadcast environment. Most advanced features found as optional on other receivers come as standard on Upcom’s line.
-
Features:
- DVB-S/S2, ASI and IP Receiver
- SD/HD MPEG-2 and H.264/MPEG-4 AVC Decoder
- Digital Audio Pass Through (AC3 pass through)
- 2X DVB-CI Slots, BISS-1 and BISS-E Decryption
- Compatible with: CONAX, CRYPTOWORKS, IRDETO, NDS, MEDIAGUARD, SECA, VIACCESS and more
- TELETEXT VBI, EBU, DVB AND CC support
- Internal Re-Multiplexer allows program filtering or aggregation
- SD MPEG-2 output in ASI or Baseband in SDI or Composite
-
Specifications:
- RF Inputs: DVB-S/S2, 950 – 2150MHz, QPSK/8PSK
- ASI Inputs: DVB-ASI, EN50083-9
- Video Ouputs: SD-SDI SMPTE 259M, 270 Mb/s (10bit), HD-SDI SMPTE 292M, 1.485 Gbit/s (10bit), Composite (NTSC, PAL, and SECAM)
- Analog Audio: Balanced XLR 2 pairs of stereo audio outputs
- Decoding: MPEG-2, MPEG 4/H.264 AVC Part 10, HD/SD, CI & BISS
- Encoding: MPEG-2 SD
- Operating Temperature: 32° to 113°F
- Storage Temperature: -13° to 131°F
- Shock and Vibration: Equal to mobile van
- Humidity: 10 to 75%
- AC Power: 85VAC to 265VAC, 50/60Hz, 20W
- Dimensions: 19″ W x 2″ H x 13″ D
- Weight: 9lbs
-
Warranty:
- 2 year
