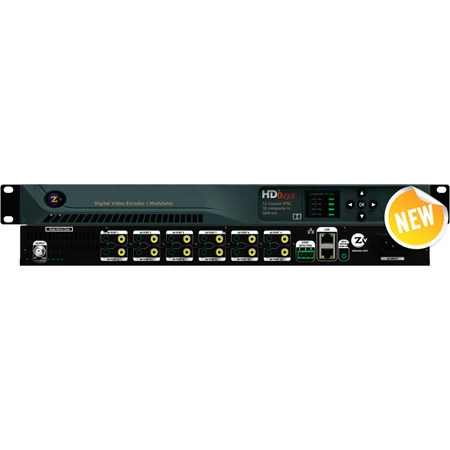

ZeeVee HDB2312 12SD Channel HDbridge Encoder / Modulator

Original price was: $336.00.Current price is: $96.99.

SKU: BWFYA 70393427 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

HDB2312 – Overview

ZeeVee launches HDbridge 2312, its newest product encoding and modulating 12SD channels of composite video and analog audio.

Priced competitively with analog modulation, the new HDbridge 2312 encodes and modulates 12SD sources for crystal clear digital reception at connected HDTVs. Quick setup through a web browser enables you to customize your system. Uses the digital tuner built into every HDTV.

Specifications:
- Video Input:
- Composite Video x 12 RCA connector, 75 Ohm 0 to 0.7v, 480i input 59.94 fields per second
- Closed Caption EIA/CEA-608 captions accepted over composite video input
- Audio Input:
- Stereo Audio Input x 12 3.5mm Stereo Female, 75 Ohm 0 to 1.0 v per channel
- Internally encoded into Dolbyr Digital AC-3
- Video Encoder:
- Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2 MP@HL
- Traffic Shaping Variable Bit Rate
- Video Transport Bit Rate 38.78 Mbps
- Video Encoding Data Rates Variable, 2 Mbs – 12 Mbs per channel
- Average Encoding Data Rate 10-12 Mbs per channel
- Encoding Latency Programmable 100 msec to 400 msec
- Color Profile 4:2:0
- GOP Size 24
- Video, Audio PID Programmable
- Program Information Programmable
- Audio Encoder:
- Encoder Audio Profile ATSC A/52, Dolby(r) Digital (AC-3)
- Modulator/Upconverter:
- Modulation Types QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
- Cable Standard HRC, IRC or STD or User defined (varies by region)
- Frequency Range Independently Frequency Agile from 54 to 864MHz (Channels 2-135) 2 kHz resolution
- +/- 30 ppm accuracy
- +/- 35 ppm stability
- Output Power +45 dBmV typical
- Output Level Adjust 25 – 45 dBmV in 1dBmV steps
- MER 40 dB typical
- I/Q Amplitude Imbalance 1% typical
- Spectral Tilt = 1dB over 6MHz typical
- Control/Setup:
- Network interface 10/100 mb Ethernet via RJ45 connection
- IP address via DHCP or set by user
- HTML/Javascript served web interface for easy configuration
- Telnet connection for CLI scripting
- Easy firmware updates
- All settings saved in NV storage
- Front Panel Color Display View channel settings and audio/video utilization on full color LCD
- General :
- Power 100-240VAC 50/60Hz, 60W max. 30W Typical. IEC 60320-C14
- Cooling Dual Internal cooling fans, Front Inlet, Rear Exhaust
- Mounting Rack ears shipped attached, 1RU high
- Enclosure Type Metal
- Enclosure Dimensions 1.72″ H x 17.33″ W (without rack mount ears) x 6.9″ D
- 43.6mm H x 440.2mm W x 175.3mm D
- System Weight 6.5lb (2.95 kg)
- Carton Dimensions (individual) 4.25″ H 30.875″ W 12.125″ D
- 108 mm H 785 mm W 308 mm D
- Shipping Weight 7.6 lbs (3.45 kg)
- Temperature/Humidity Operating +32F to +113F (0C to +45C) / 10% to 80%, non-condensing
- Vibration NSTA 1A in carton
- MTBF 62,000 hours
- Compliance FCC Class A
- Part number HDb2312-NA
- Model name HDb2312
- Warranty 5 years
Warranty:
- 5 Years
GTIN:

0812254010564
