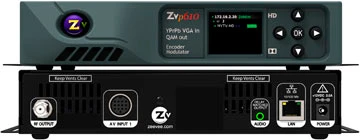

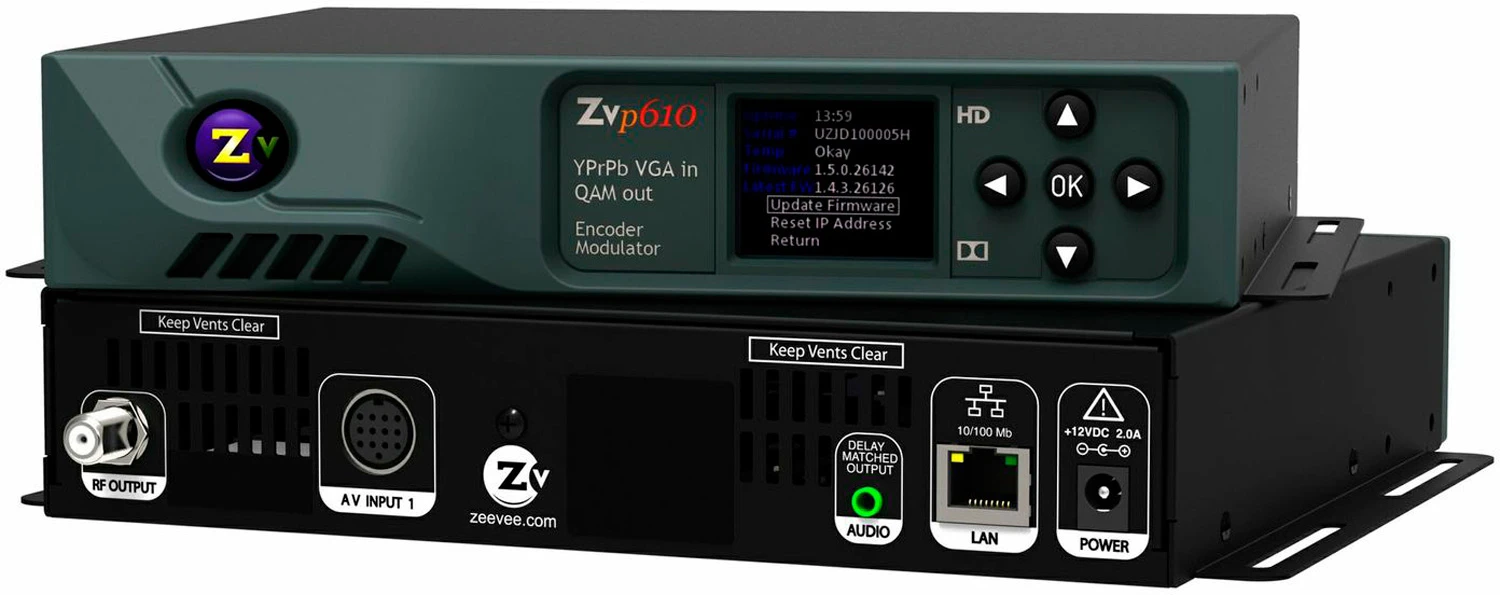

ZeeVee ZvPro 610 Single Channel Component/VGA Encoder/QAM Modulator

ZeeVee ZvPro 610 Single Channel Component/VGA Encoder/QAM Modulator - Image 2

ZeeVee ZvPro 610 Single Channel Component/VGA Encoder/QAM Modulator

Original price was: $336.00.Current price is: $97.99.

SKU: BWFYA 48883763 Categories: Digital CATV & RF Distribution, HD Transcoders & QAM Encoders

Efficient and effective customer service, online.
Your needs, our top priority.
No-Questions-Asked Returns
High quality products, low prices.

Description
Reviews (0)

ZVPRO610 – Overview

Create Your Own HDTV Cable Channel & Broadcast VGA or Component Using Coax Wiring!

Based on the same technology used by TV stations and cable companies, ZvPro 610 makes it affordable to convert your VGA or Component video into an HDTV channel and “Broadcast it over simple to use COAX wiring to everyone” premise. Its standard QAM cable channel output can be received by practically any off-the-shelf digital cable-ready HDTV without requiring an additional box at the TV.

Note: Breakout cables are required & sold separately. (ZV709-6, ZV710-6)

Features:
- Dual Component/Composite or VGA with Audio Input (Hydra AV Breakout Cable Required- sold separately)
- Power web-based interface for configuring and monitoring
- Color front panel configuration and status at a glance
- Compact, fan-cooled package
- High power 45dBmv output
- Shelf or rack mount – via integral flanges or optional mounting kit
- Front-Panel Color LCD – for Configuration and Status
- Web-based mangement – local or remote setup and monitoring
  Component/VGA input – two choices, from a full sized DIN connector:
- Hydra cables with 7 inputs (component HD video, analog and digital audio) for clean wiring, easy diagnostics and maximum flexibility
- VGA with analog audio input
  Analog and Digital Audio – internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
- Integrated Closed Caption support – required for ADA compliance in many applications.
- High power output – up to 45dBmV
- Strong retention force power connector
- Two year warranty
- Proudly designed in Massachusetts and Built in the USA
Specifications:
- Video Inputs
  YPrPb or RGB Video 1 port – DIN connector HDbridge end, RCA connectors for HD source
- Computer VGA (Analog) – HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
- VGA Resolutions Supported – 640×480, 720×480, 800×600, 1024×768, 1152×864, 1176×664, 1280×720, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1440×900 at 60 70, 72, 75, 85 Hz. 1680×1050 and 1920×1080 at 60 Hz. VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60.
- Closed Caption – EIA/CEA-608 captions accepted over composite video input
  Audio Inputs
  Analog Audio Input – 75 Ohm 0 to 0.7v at Line-level input, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connector on DIN-> VGA cable
- Digital Audio – Digital S/PDIF on DIN->RCA Cable (N/A on DIN->VGA cable)
- Encoding – Internally encoded into Dolbyr Digital AC-3 or MPEG1 Layer 2 (varies by region)
Warranty:
- Five Year
GTIN:

0812254010397
